‹ Home › Inventory › FLSL 2020 Softail Slim®

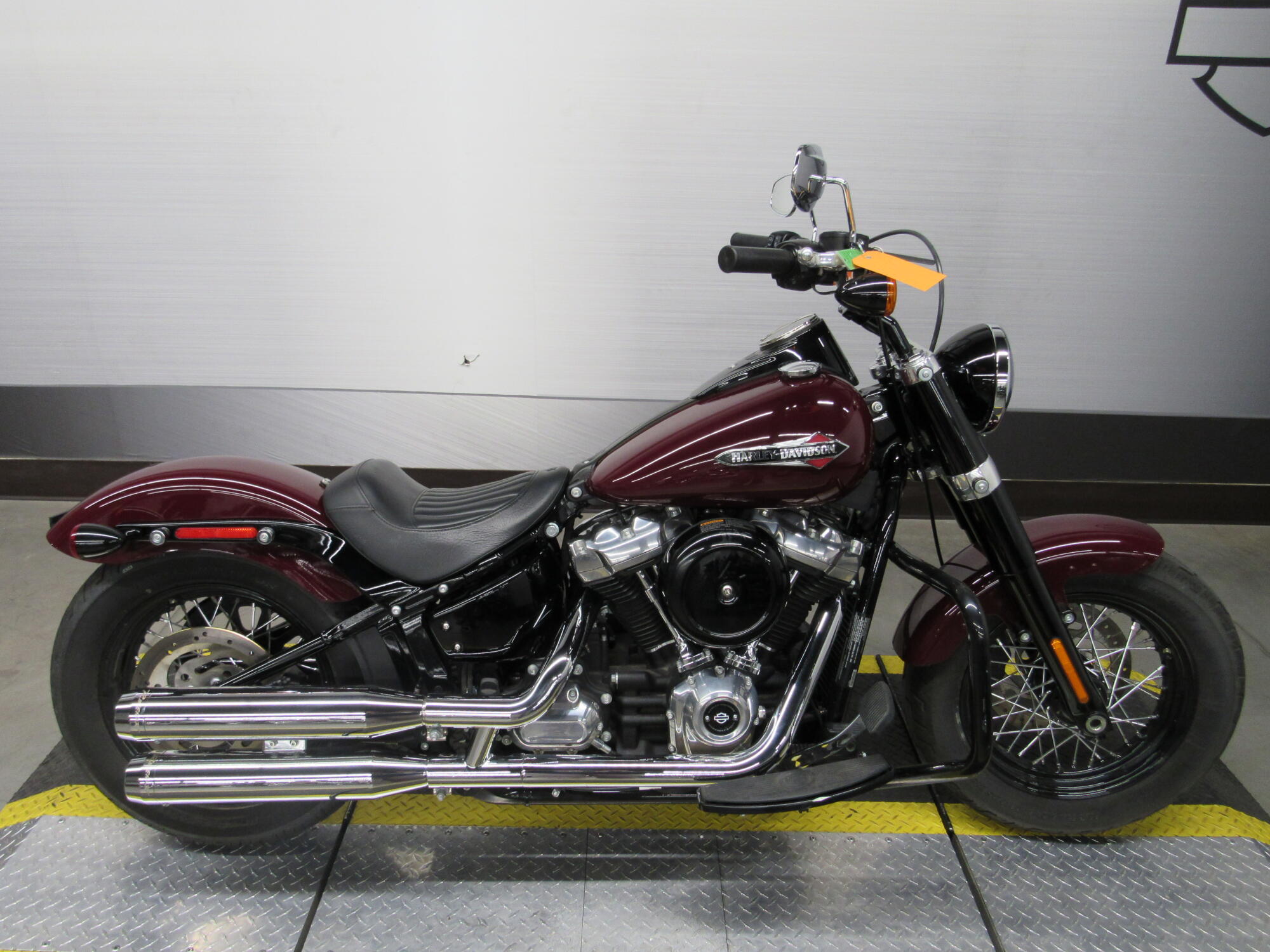

The stripped-down, souped-up, post WWII era look of the bobber is running stronger than ever in the Softail Slim® model. You get the classic look of spoked wheels, chopped mudguards and footboards. And a ride straight out of right now. It’s 16 kilograms lighter, with greater lean angle, than Slim models from just a couple of years ago. And you get the power and soul-satisfying sound of the Milwaukee-Eight® 107 V-Twin engine to take you into the future. Fast.

Specifications

Dimensions

add remove
- Length:

  90.9 in
- Ground clearance:

  4.7 in
- Rake (steering head):

  30
- Trail:

  5.8 in
- Wheelbase:

  1,630.0 in
- Tires, front specifications:

  130/90B16,73H,BW
- Tires, rear specifications:

  150/80B1677H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  642 lbs
- Weight, in running order:

  671 lb
Engine

add remove
- Engine:

  Milwaukee-Eight® 107
- Bore:

  3.9 in
- Stroke:

  4.4 in
- Displacement:

  106.55 in³
- Compression ratio:

  10.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 shotgun; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  109.9 ft-lb
- Lean angle, right (deg.):

  27.4
- Lean angle, left (deg.):

  27.4
- Fuel economy:

  0.00 mpg
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Gloss Black, Steel Laced
- Wheels, rear type:

  Gloss Black, Steel Laced
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel
- Gauges:

  5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
