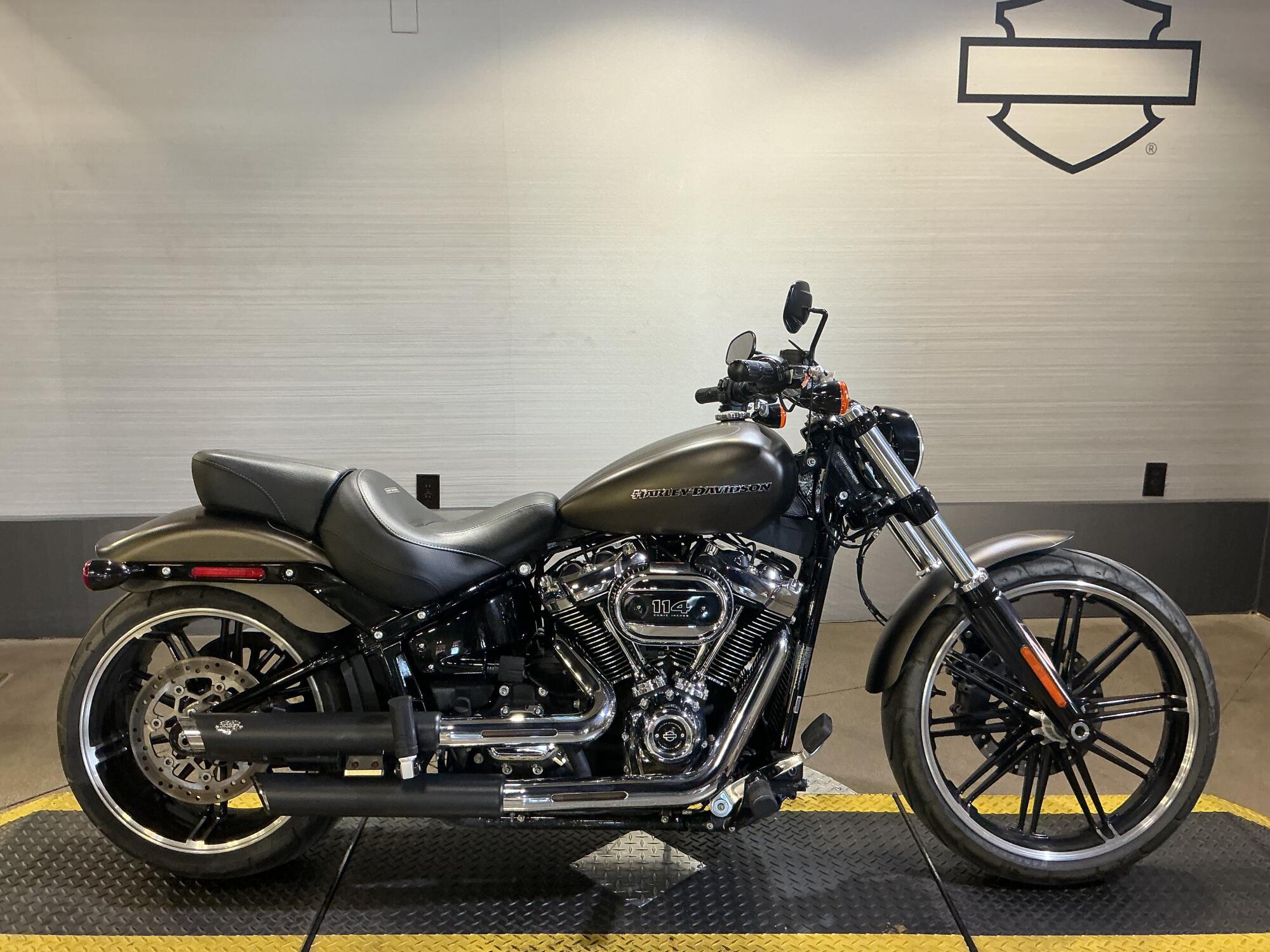

‹ Home › Inventory › FXBRS 2020 Breakout® 114

The Breakout® model takes long, lean muscle to the modern edge. The Milwaukee-Eight® 107 or 114 engine stands out like a flexing bicep. It sends massive torque to the 240mm rear tyre. There are custom details from front to back. And a re-invented Softail® frame and suspension that give you more agility than you ever imagined from a bike carrying this much dragster attitude. Reach for the drag bars and unleash it on the street. It’ll make an impact. Available in 107 (1745cc) and 114 (1868cc) engine displacements.

Specifications

Dimensions

add remove
- Length:

  93.3 in
- Ground clearance:

  4.5 in
- Rake (steering head):

  34
- Trail:

  5.7 in
- Wheelbase:

  1,695.0 in
- Tires, front specifications:

  130/60B21,63H,BW
- Tires, rear specifications:

  240/40R18,79V,BW
- Fuel Capacity:

  3.5 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  648 lbs
- Weight, in running order:

  672 lb
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  118.7 ft-lb
- Lean angle, right (deg.):

  26.8
- Lean angle, left (deg.):

  26.8
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  0.00 mpg
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, optional style type:

  N/A
- Wheels, front type:

  Gloss black, Gasser II cast aluminum
- Wheels, rear type:

  Gloss black, Gasser II cast aluminum
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges:

  2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
