‹ Home › Inventory › FXBB 2026 Street Bob®

Sale pending

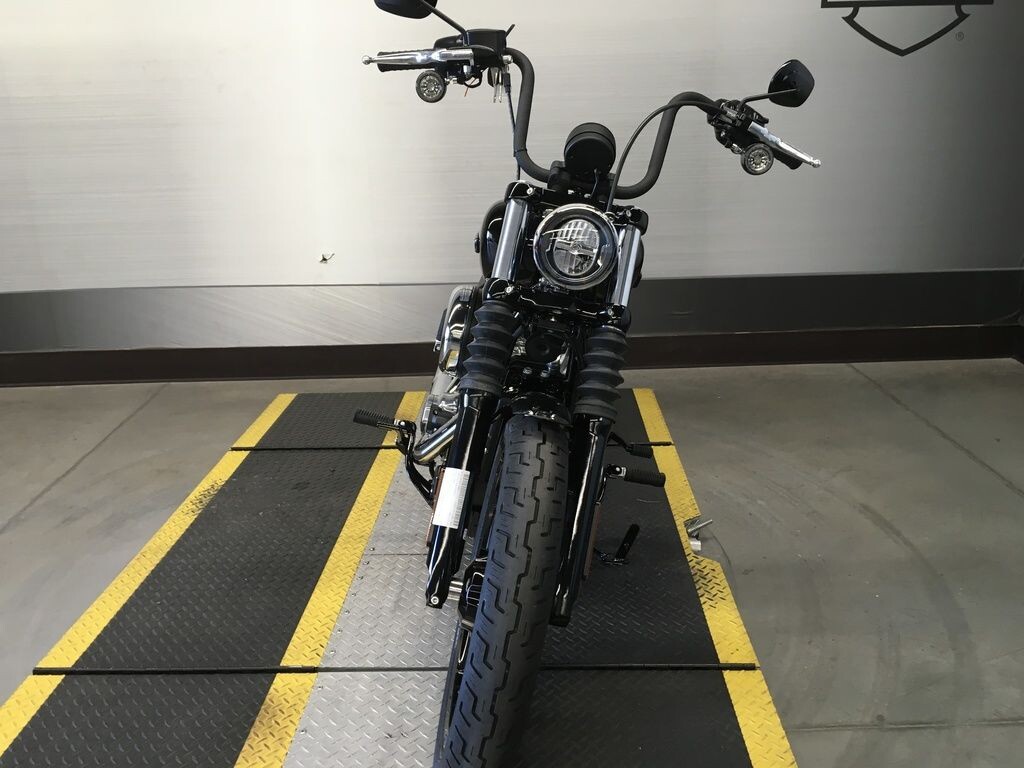

2026 Harley-Davidson® Street Bob®The New Definition of “Less Is More” The 2026 Street Bob is lean by design| and loaded up where you need it. With a Milwaukee-Eight® 117 motor| torque-tuned 2-into-1 exhaust| updated 4” analog gauge| USB-C charging| and standard Rider Safety Enhancements| it leaves the frills on the factory floor| but doesn't skimp. Features may include: Built for Riders Who Don’t Do FactoryThe 2026 Street Bob is simple and stripped down so you can let your style do the talking.All-LED LightingClear| bright LED turn signals let everyone on the road know where you’re going| and a 5.75" (146 mm) LED headlight provides a wide beam of bright white light to make sure you can see what’s ahead.Timeless Colorways with A Legendary MedallionThe legendary “stretched diamond” black-and-chrome tank medallion| inspired by Willie G.’s legendary 1966 design| makes its debut on the Street Bob across all five paint options.Classic Styling with a Bold EdgeWith mini ape-hanger bars| a slim 3.5-gallon (13.2 l) gas tank| and a short| bobbed rear fender| the Street Bob has custom bobber style straight from the factory with none of the custom bobber struggle.Power That Speaks For Itself.A Milwaukee-Eight 117 and reworked suspension keep the 2026 Street Bob hard-hitting| sure-footed| and ready for whatever the road throws your way.Rider-Ready Milwaukee-Eight® 117 Classic V-Twin MotoA serious step up from the Milwaukee-Eight 114| the new Milwaukee-Eight® 117 Classic delivers relentless torque every time you’re ready to roll it on.

Specifications

Dimensions

add remove
- Length:

  91.3 in
- Seat height, unladen:

  26.8 in
- Ground clearance:

  4.9 in
- Rake (steering head):

  30
- Trail:

  6.2 in
- Wheelbase:

  64.2 in
- Tires, front specifications:

  100/90B19,57H,BW
- Tires, rear specifications:

  150/80B16,77H,BW
- Fuel Capacity:

  3.5 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  622 lbs
- Weight, in running order:

  646 lb
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Classic
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  120.2 ft-lb
- Engine torque (RPM):

  2500
- Horsepower:

  98 HP / 73 kW @ 4600 rpm
- Lean angle, right (deg.):

  28.5
- Lean angle, left (deg.):

  28.5
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
- Wheels, front type:

  Black, Annihilator cast aluminum
- Wheels, rear type:

  Black, Annihilator cast aluminum
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
