‹ Home › Inventory › FXLRS 2022 Low Rider® S

Sale pending

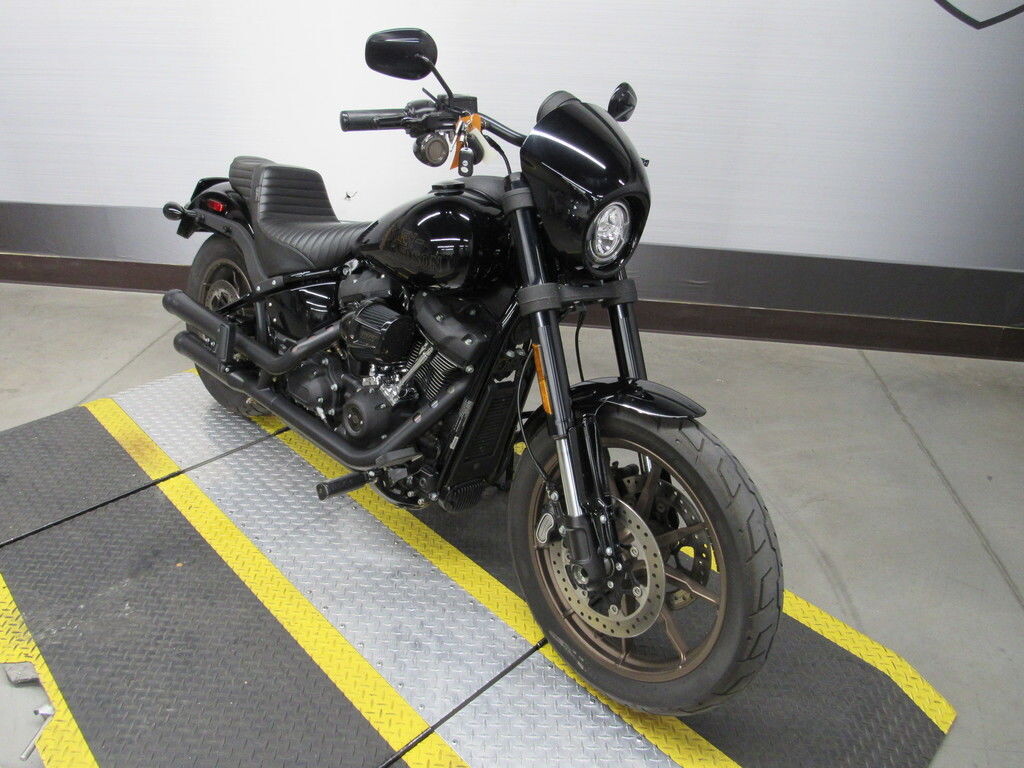

2022 Harley-Davidson® Low Rider® S A blacked-out| factory custom performance cruiser. Features may include: THIS IS THE RIGHT BIKE FORRebels seeking a now classic West Coast StyleAggressive riding with sport bike agility and handlingRiders who like to push their bike to the limitsPOWERTRAINMILWAUKEE-EIGHT® 117 V-TWIN High-performance engine with precision oil/air cooling is the new pinnacle of torque and displacement in a factory-installed Harley-Davidson® powertrain. And if that’s not enough| boost performance further with Dealer-installed Screamin’ Eagle® Performance Parts Stage Upgrades from Harley-Davidson® Genuine Motor Parts & Accessories. WEST COAST STYLINGBLACKED OUT WITH SOLO SEAT The powertrain| primary cover| triple clamps| top clamp| rear fender supports and tank console are finished in Wrinkle Black; the derby cover| intake| lower rocker covers and handlebar riser are Gloss Black. The handlebar is Satin Black. The forks are anodized black. Mufflers and exhaust shields are Jet Black. An everything black overload| paired with a deep solo seat for lone-wolf attitude. HANDLEBARS One-inch moto handlebar mounted on four-inch risers gives the overall look of the bike a Coastal style element that puts the rider in an aggressive posture on the bike. CONSOLE Low-profile textured black tank console with FXLRS badge covers the fuel tank weld and replaces the console with gauges used on Low Rider® S 114 model.

Specifications

Dimensions

add remove
- Length:

  93.1 in
- Seat height, unladen:

  28.0 in
- Rake (steering head):

  28
- Trail:

  5.7 in
- Wheelbase:

  63.6 in
- Tires, front specifications:

  110/90B19,62H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  650 lbs
- Weight, in running order:

  679 lb
Engine

add remove
- Engine:

  Milwaukee-Eight® 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 offset shotgun; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  124.6 ft-lb
- Engine torque (RPM):

  3,500
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type:

  Dark bronze, Radiate cast aluminum wheel
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
