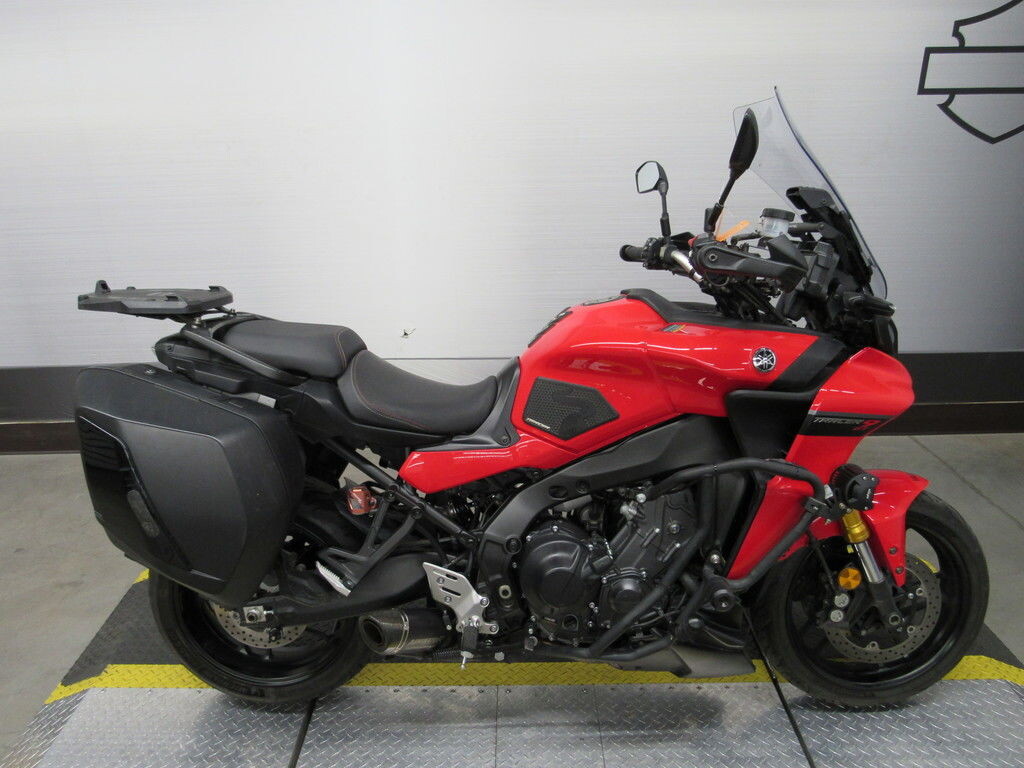

‹ Home › Inventory › MTT09DAN 2022 Tracer 9 GT

2022 Yamaha Tracer 9 GTTURN UP YOUR EXPERIENCE Featuring an all-new engine and premium sport touring features that come standard| the most versatile touring partner for when you're commuting or riding across the mountains. Features may include: ENGINEAll-New 890cc Liquid-Cooled Three-Cylinder DOHC Fuel-Injected Engine The Tracer 9 GT features a newly developed 890cc liquid-cooled three-cylinder| DOHC| four-valve-per-cylinder fuel-injected (YCC-T) engine with a downdraft intake. The bore × stroke of 78 mm × 62.1 mm and 11.5:1 compression ratio provide outstanding torque with strong power delivery characteristics. Almost all of the fundamental parts of the engine| from the pistons and connecting rods to the crankshaft| camshafts and crankcase| have all been redesigned. The combustion efficiency results in an impressive 9% improvement as well as an increased fuel efficiency to 49 MPG. Redesigned Fuel Delivery System The fuel delivery system has been completely redesigned. On former Tracer 9 GTs| the fuel injectors were attached directly to the cylinder head| but the fuel injectors of the Tracer 9 GT are now attached to the throttle valve side of the throttle bodies. The injectors now spray at the back of the intake valve heads to promote atomization of the fuel and reduce adhesion of fuel particles to the port walls| producing outstanding combustion efficiency. The throttle valve is operated using the Yamaha Chip Controlled Throttle (YCC-T) electronic system which has been widely proven on YZF series models as well as the earlier Tracer 9 GT models. CHASSIS/SUSPENSIONNew Lightweight Aluminum Frame To achieve both sporty performance and excellent riding comfort| the new Tracer 9 GT adopts a newly developed lightweight aluminum frame with model-specific tuning. Using the latest Controlled Filling (CF) aluminum die-casting technology| this frame features the thinnest sections ever on a Yamaha die-cast frame at just 1.7 mm (thinnest section on the 2020 Tracer 900’s frame is 3.5 mm). Strong Steel Subframe The Tracer 9 GT's steel subframe ensures excellent straight-line stability and cornering ability| even when outfitted with a large fuel tank and three hard rear luggage cases. ADDITIONALAll-New Design The Tracer 9 GT's next-generation style expresses not only its sporty ride but its refined mobility and functionality. The aerodynamic front fairing creates a silhouette that showcases the bike's tightly packed chassis and powerful forward drive while perfectly integrating the functions and elements needed for a comfortable and convenient ride. Full LED Lighting With Cornering Lights The compact mono-focus (separate high and low beam units) LED headlights in a twin-eye arrangement provide excellent beam spread for the Tracer 9 GT. The edges of the beam have a softer contrast to be easy on the eyes while emitting a soft and even spread of illumination. Since the Tracer 9 GT uses not one but multiple LEDs to produce light| it can project a complex distribution of illumination across a broad field. The position lights also use LEDs for a wider field of illumination while the redesigned rear lights give off a smoother plane of light. The cornering lights help improve rider's confidence at night as the light strength grows as the lean angle increases. Following the FJR1300ES| this is the second Yamaha model to feature a cornering light system but the only one with a single LED unit per side that emits increasingly stronger source of light in a high-quality| highly functional design.

Specifications

ENGINE

add remove
- Engine Type:

  Liquid-cooled, DOHC, 12-valves (4 valves/cyl.), inline three-cylinder
- Cylinders:

  3
- Engine Stroke:

  4-Stroke
- Cooling:

  Liquid
- Valves:

  12
- Valves Per Cylinder:

  4
- Valve Configuration:

  DOHC
- Bore (in):

  3.07
- Stroke (in):

  2.44
- Displacement (cc):

  890
- Fuel Injector:

  Yes
- Carburetor:

  No
- Carburetion Type:

  Fuel Injected
- Turbocharged:

  No
- Supercharged:

  No
- US Miles Per Gallon (Combined):

  49
- Displacement:

  889 cc
- Bore x Stroke:

  78 x 62.1 mm
- Compression ratio:

  11.5:1
- Maximum Torque:

  9.3 kg-m (68.6 ft-lb.) @ 7,000 rpm
- Engine Management:

  YCC-T, D-Mode (4 settings), traction control /cruise control
- Fuel Delivery:

  Mikuni 41 mm throttle body F.I.
- Transmission:

  6-speed
- Final Drive:

  O-ring chain
- Ignition:

  TCI / Electric
- Estimated Fuel Consumption±:

  n/a
- Lubrication:

  Wet sump
TRANSMISSION

add remove
- Transmission Type:

  Manual
- Number Of Speeds:

  6
- Overdrive:

  No
- Primary Drive (Rear Wheel):

  Chain
- Gear Ratio (1):

  2.57
- Gear Ratio (2):

  1.95
- Reverse:

  No
TECHNICAL SPECIFICATIONS

add remove
- Length (in):

  85.6
- Width (in):

  34.8
- Height (in):

  56.3
- Wheelbase (in):

  59.1
- Ground Clearance (in):

  5.3
- Fuel Capacity (gal):

  5
- Engine Displacement to Weight (cc):

  1.84
- Wet Weight (lbs):

  485
SUSPENSION

add remove
- Front Suspension Type:

  Inverted Fork
- Front Suspension Size (in):

  1.6
- Front Travel (in):

  5.1
- Front Adjustable Fork Pre-Load:

  Yes
- Front Adjustable Rebound Damping:

  Yes
- Front Central Suspension Strut:

  No
- Steering Damper:

  No
- Rear Suspension Type:

  Twin Sided Swing Arm
- Rear Travel (in):

  5.4
- Rear Adjustable Shock / Spring Pre-Load:

  Yes
- Rear Adjustable Rebound Damping:

  Yes
- Number Rear Shock Absorbers:

  1
- Rear Suspension Material:

  Aluminum
- Air Adjustable:

  No
- Front Suspension Brand Name:

  KYB
- Rear Suspension Brand Name:

  KYB
WHEELS & TIRES

add remove
- Wheels Composition:

  Forged Aluminum
- Tube / Tubeless:

  Tubeless
- Tires:

  Standard
- Front Tire (Full Spec):

  120/70 ZR17
BRAKES

add remove
- Front Brake Type:

  Dual Hydraulic Disc
- Front Brake Diameter (in):

  11.7
- Rear Brake Type:

  Hydraulic Disc
- Rear Brake Diameter (in):

  9.6
- Regenerative Braking:

  Not Available
- Regenerative Deceleration:

  Not Available
SEATS

add remove
- Seat Type:

  Two-Piece
- Seat Location:

  Driver and Passenger
- Seat Material:

  Vinyl
- Seat Specifications:

  Standard
- Seat Height (in):

  31.9
- Number Of Seats:

  2
- Detachable Passenger Seat:

  Not Available
- Seat Backrest:

  Optional
- Grab Rail or Strap:

  Standard

Request Details

Please waitseconds before submitting another form. cancel

First name Required

Last name Required

Phone Required

Email Required

Your inquiry

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

MTT09DAN 2022 Tracer 9 GT

Price: $9,995.00

: UYA001462

: Yamaha

: Sport Touring

: Pre-owned

: 2022

: 13249 mi

: RED

: Roadrunner Harley-Davidson®

Request details Get an insurance quote Get financing

623-323-9245
