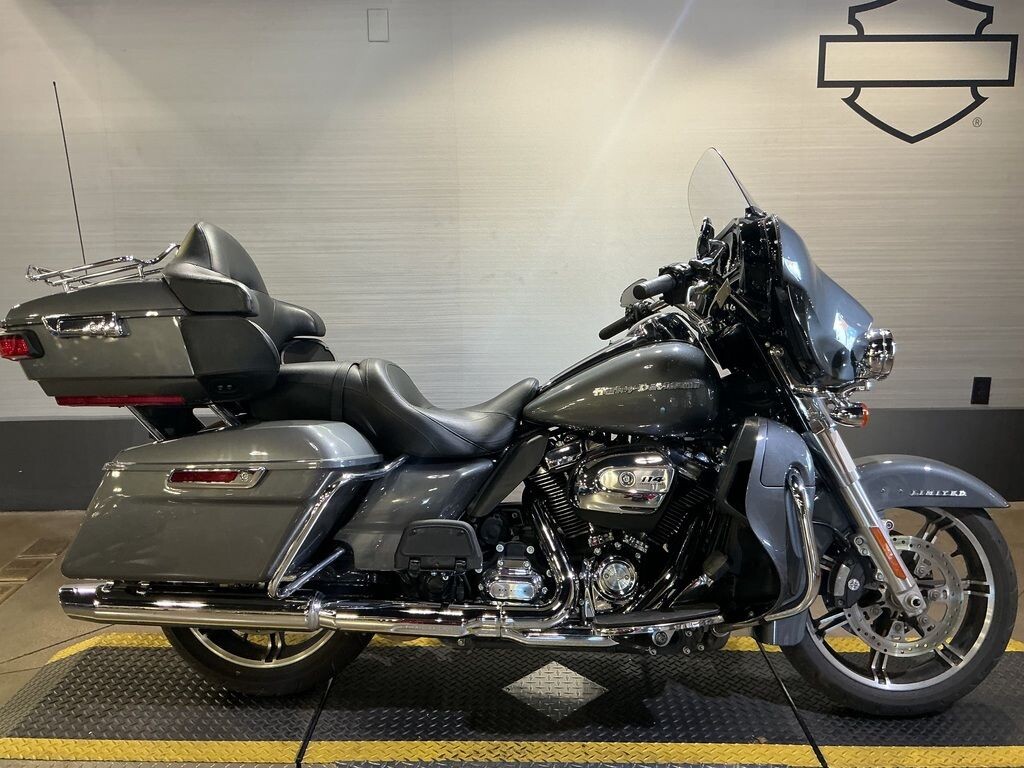

‹ Home › Inventory › FLHTK 2022 Ultra Limited

From its heated handgrips down to its Twin-Cooled™ Milwaukee-Eight® 114 engine, the Ultra Limited motorcycle helps you find your balance in its marriage of machinery and technology. Need your bike to express your dark side? Check out the new bold black finish that engulfs the entire bike, from its wind-cutting, vented batwing fairing back to its roomy Tour-Pak® carrier.

Specifications

Dimensions

add remove
- Length:

  102.4 in
- Seat height, unladen:

  29.1 in
- Ground clearance:

  5.3 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  BW 130/70B18 63H
- Tires, rear specifications:

  BW 180/55B18 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  880 lbs
- Weight, in running order:

  917 lb
- Luggage capacity – volume:

  4.7 cu ft (0.132 m3)
Engine

add remove
- Engine:

  Twin-Cooled™ Milwaukee-Eight™ 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  118.0 ft-lb
- Engine torque (RPM):

  3000
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  37.3 mpg (6.3 l/100km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  146 g/km CO2
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Wheels, optional style type:

  Gloss Black Slicer II
- Wheels, front type:

  Slicer II cast aluminum with clear coat
- Wheels, rear type:

  Slicer II cast aluminum with clear coat
- Brakes, caliper type:

  32 mm, 4-piston fixed front and rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system, gear indication, battery, low fuel warning, cruise control, ABS (if equipped), f
- Gauges:

  Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  25
- Speakers:

  4
- Speaker size:

  5.25 inch standard
- Headset specifications (if equipped):

  16-64 ohms
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade (USA & Canada only)
- Languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Voice Recognition Languages: Tuner / Media / Navigation:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Text-to-Speech (TTS) languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Rider / passenger intercom:

  Standard
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
