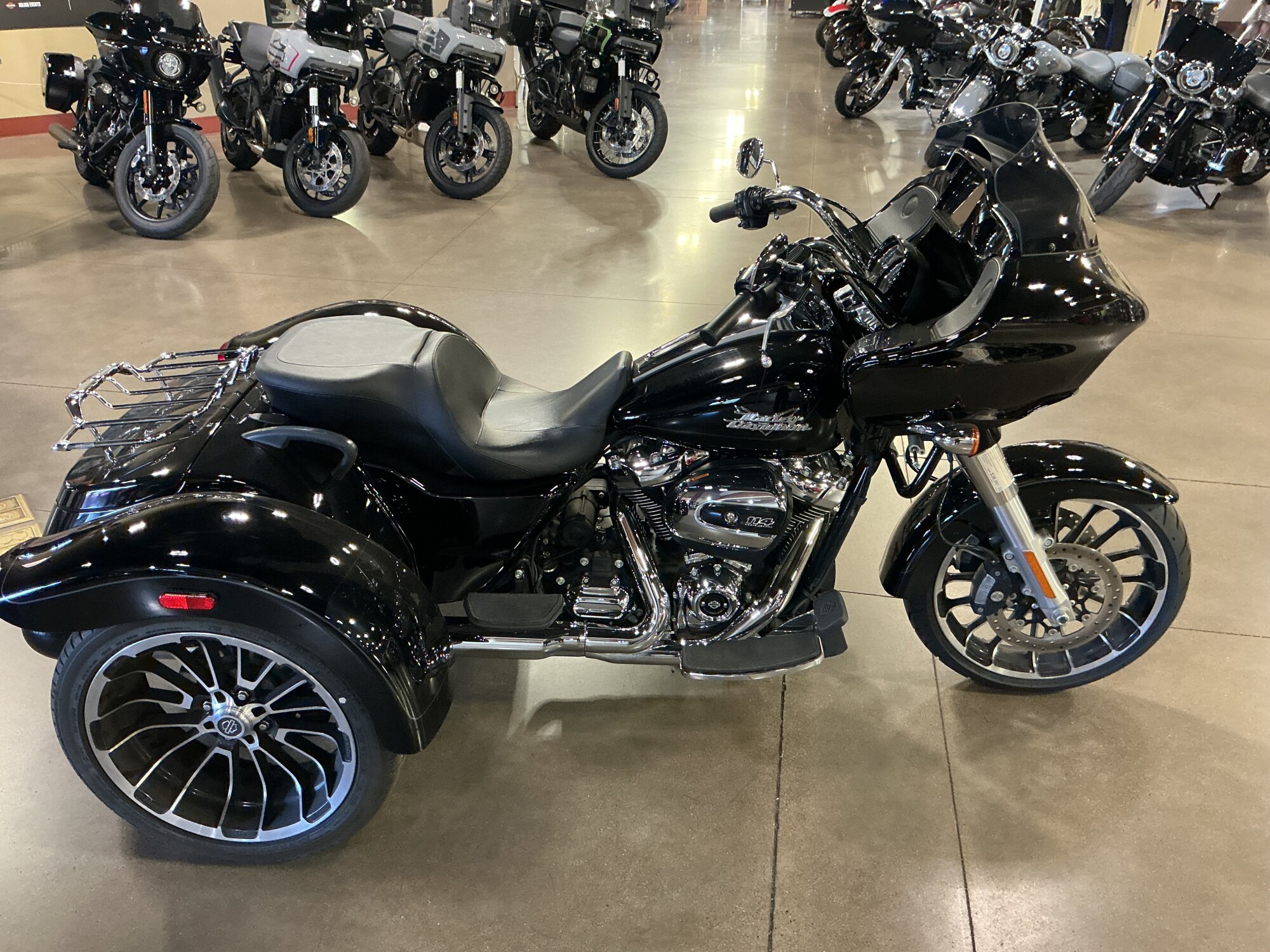

‹ Home › Inventory › FLTRT 2025 Road Glide® 3

The Road Glide 3 merges the style of a Sharknose bagger with the comfort of a trike, featuring iconic Harley-Davidson design elements, commanding ergonomics, and your choice of classic chrome or blacked-out finishes.

Specifications

Dimensions

add remove
- Length:

  103.0 in
- Seat height, unladen:

  27.6 in
- Rake (steering head):

  26
- Wheelbase:

  65.7 in
- Tires, front specifications:

  MT 130/60B19 M/C 61H
- Tires, rear specifications:

  P215/45R18 83T
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  1,124 lbs
- Weight, in running order:

  1164 lb
- Luggage capacity – volume:

  2 cu ft (0.06 m3)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Shorty slash down-style chrome finish mufflers
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  119.5 ft-lb
- Engine torque (RPM):

  2750
- Horsepower:

  90 HP / 67 kW @ 4750 rpm
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  42.8 mpg (5.5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  10.534
- Gear ratios (overall) 2nd:

  7.302
- Gear ratios (overall) 3rd:

  5.423
- Gear ratios (overall) 4th:

  4.392
- Gear ratios (overall) 5th:

  3.741
- Gear Ratios (overall) 6th:

  3.157
Chassis

add remove
- Front fork:

  1.9 in. dual bending valve
- Rear shocks:

  Hand-adjustable emulsion rear suspension
- Wheels, front type:

  Cast aluminum
- Wheels, rear type:

  Cast aluminum
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  Front: 1.3 in. piston fixed, Rear: floating 1.4 in. piston integrated park brake
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  25
- Speakers:

  4
- Speaker size:

  5.25 inch
- Headset specifications (if equipped):

  16 - 64 ohms
- AM:

  Standard
- FM:

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
